CAC-Tech-Master Brass High Pressure Regulators

Single and Dual stage high pressure regulators suitable for non corrosive gas mixtures with  purity up to grade 4.5

The Tech-Master Brass High Pressure Regulators are ideally suited for laboratory, research and analytical facilities.

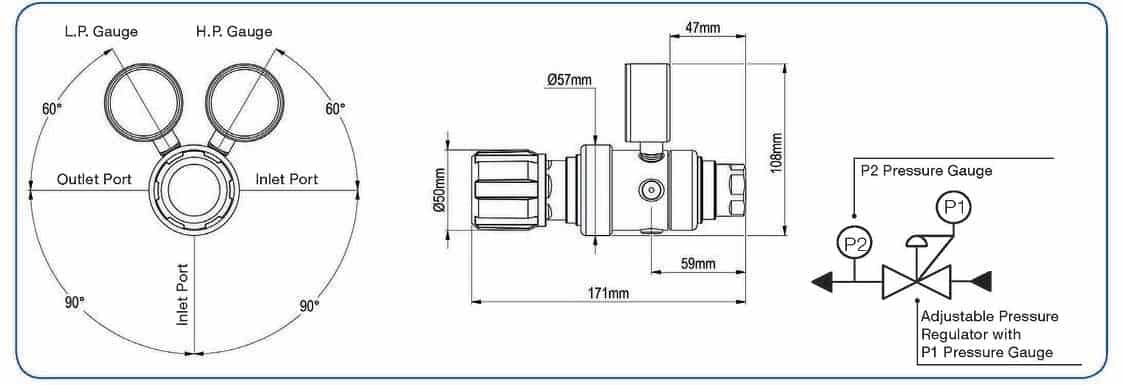

TECH MASTER GPT400 SERIES

4.5 Purity Two Stage Brass Barstock Diaphragm Cylinder Regulator

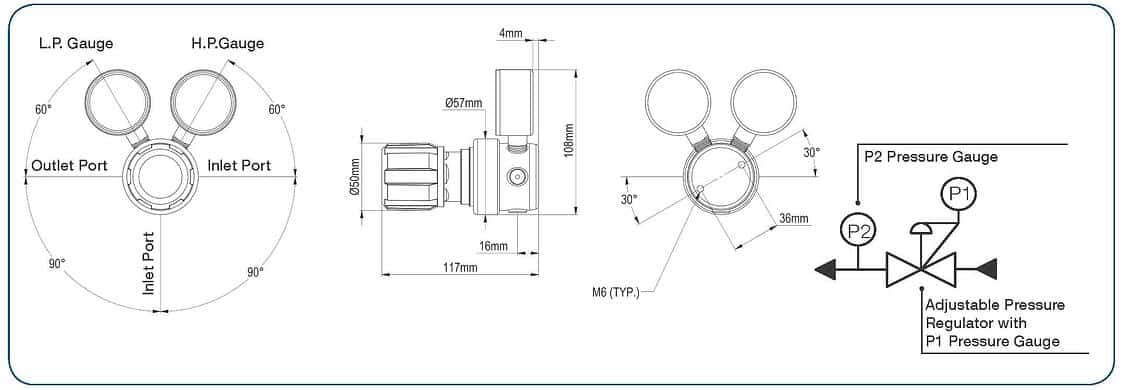

TECH MASTER GPS400 SERIES

4.5 Purity Single Stage Brass Barstock Diaphragm Cylinder Regulator

Specifications:

• Materials:
  • Body: Brass
  • Piston: Brass
  • Valve Seat: Polyamide (Nylon)
  • Diaphragm & Diaphragm Seal: Polychloroprene (Neoprene)
  • Piston Seal: FKM
  • Filter: Sintered 316L Stainless Steel
• Weight: 2.0kg
• Temperature: -20c to +60c
• Inlet Pressure:
  Maximum 300 bar
• Outlet Pressure:
  • Low-Pressure Diaphragm Regulator (0-1.5/3.5/6/10 BAR)
  • High-Pressure Piston Regulator (0-20/50/100/200/250 BAR)
  • Low-Pressure Diaphragm Regulator (0-1.5/3.5/6/10 BAR)
  • High-Pressure Piston Regulator (0-20/50 BAR)
• Connections: inlet: All BS, AS, and CGA connections available
• Outlet:  1/4″ NPT Female

---
